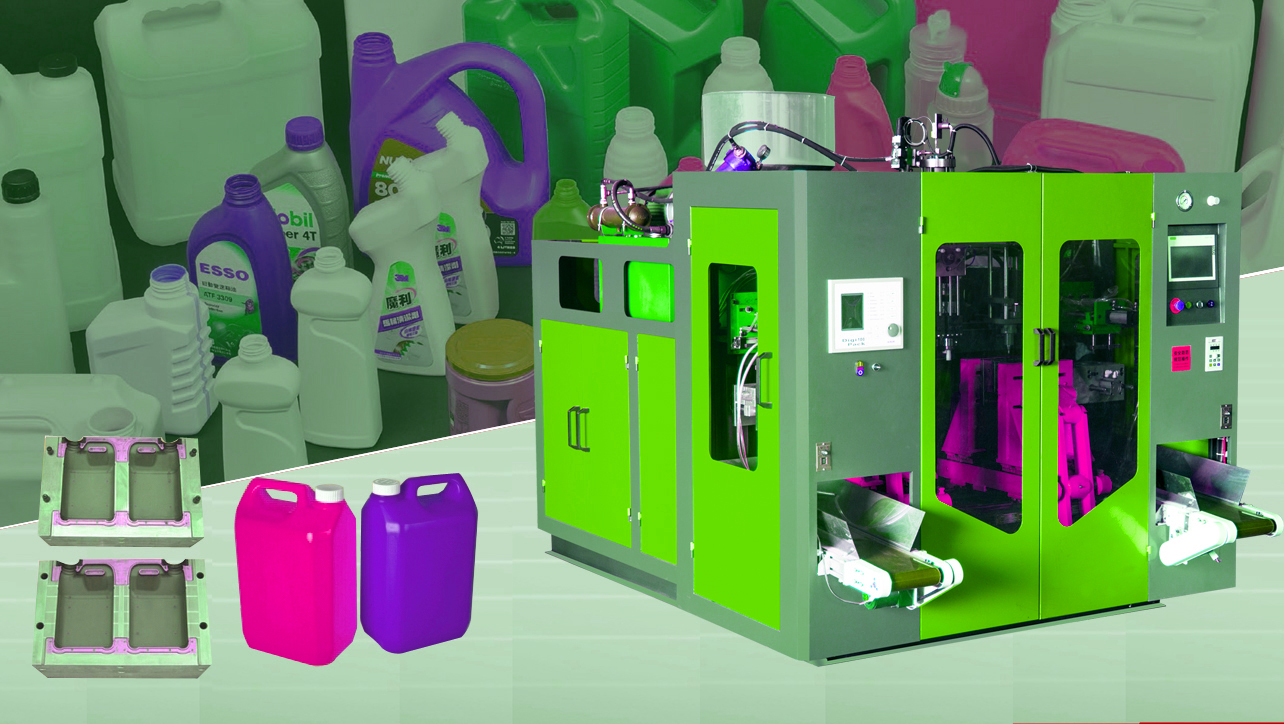

Plastic Jerry Can 10 Liter Extrusion Blow Molding Machine 10L Hdpe Bottle Making Machine

The company can also manufacture bottle blowing moulds, blow molding moulds, and injection moulds. For example: all kinds of PET blowing moulds; all kinds of blowing molds for medicine bottles, oil pots, stacking barrels, sprayers, tool boxes, car seats, table legs, models, paint buckets, etc.; all kinds of preform caps, plastic Injection molds for knives, spoons and forks, turnover boxes, trash cans, tables, chairs, benches, space cups, drying racks, trays, automobile molds, etc.


In addition, the company can design and open molds to make all kinds of plastic products. The product materials involve PE, PP, PC, PA, PS, ABS, EVA, PEGT, EVOH, PVDC, PAN, PPE, POM, TPE. Give a concept and give you a satisfaction products, mutual benefit and win-win.Extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages,

medicines,chemical products, pesticides&detergents, water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.

Specification
Unit
65
80
Machine Size
m
4.5m*2.3m*2.4m
4.8m*2.4m*2.5m
Machine Weight
Tons
3
6
Clamping Force
Kn
50
70
Template Size(W*H)
mm
350*450mm
400*500mm
Max Mold Size(W*H)
mm
350*450mm
400*500mm
Screw Diameter
mm
65mm
80mm
Screw L/D
L/D
25∶1
25∶1
Screw Driver Power
Kw
11
15
Screw Heating Power
Kw
15
20
Screw Screw Heating Zone
Zone
7
8
Double Die Center Distance
mm
180mm
250mm
Total Power
Kw
40
60KW
Oil Pump Motor
Kw
11
15
Blowing Pressure
Mpa
0.3-0.6
0.3-0.6
Air Consumption
M3/min
0.5
0.5
