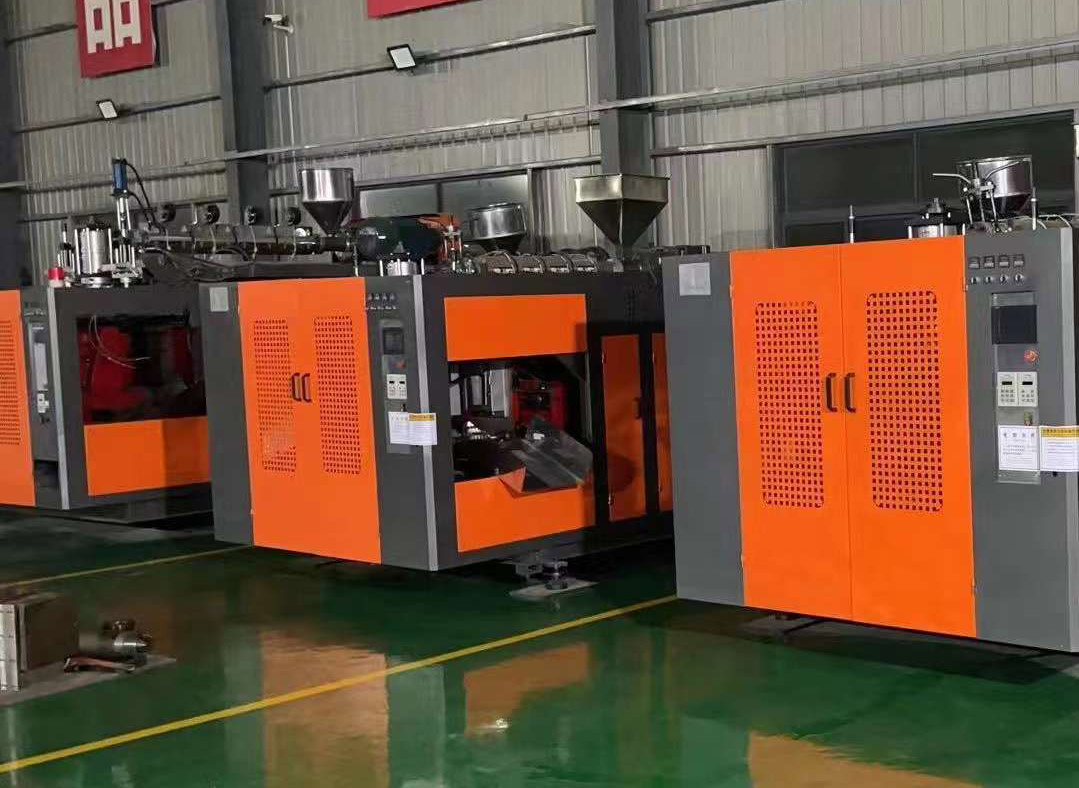

Urea barrel blow molding machine manufacturer / plastic barrel production equipment company

Basic Information
Model advantages
1. Economical equipment, low cost, suitable for customers with little investment and those who are new to the industry.
2. Double protection of the unique clamping frame: first, the guide rail is equipped with safety threshold electronic components, and second, there is a mechanical limit block at the end of the guide rail, which can prevent the clamping arm from falling off.
3. The inside of the die is finely processed, the flow channel is smooth and there is no dead corner accumulation, and professional analysis software measures the smoothness of the flow channel of the die head to ensure that the two walls of the flow channel are smooth and delicate.
4. Optimized hydraulic oil circuit design, power saving, fast action, and convenient parameter adjustment.
5. Frequency conversion and speed regulation extrusion motor can adapt to the requirements of blow molding process on the change of screw speed.
6. According to product characteristics, different die heads can be set for customers to choose.
7. The K series adopts the central oil cylinder structure of the back plate, and the clamping force is strong and even.

Model performance characteristics
1. It is suitable for the production of plastic hollow products made of PE, PP, EVA, ABS, K material, TPU, nylon and other materials below 2L.
2. The structure of four guide pillars balanced push rods, down-loading superhard quenched and tempered guide pillars and fully open template design can accommodate ultra-long and ultra-wide moulds.
3. The products can be exported to the side or below to facilitate the production of different products.
4. Touch-screen man-machine interface, easy to operate and set.
5. Double pump design: two hydraulic oil pumps supply oil in parallel under low pressure, one hydraulic oil pump supplies oil under high pressure, and the other hydraulic pump unloads. Small power loss, energy saving and low consumption.
6. The double proportional valve controls the flow rate and pressure of the oil circuit, the reversing valve controls the flow direction, the deceleration valve brakes, and the action is smooth and fast;
7. The central force design of the template, the clamping force is evenly distributed;
8. CE standard safety design, focusing on user safety;
9. The Japanese frequency converter adjusts the screw speed to save electricity and energy;
10. Automatic lubrication system reduces equipment maintenance workload.

Model optional features
1. For the convenience of material return, the user can choose to add a hydraulic automatic filter replacement device, which can be added with a down blowing, wall thickness controller, automatic bottom pulling or automatic flash removal device;
2. Optional pre-sealing cutter, horizontal cutter, imported hot cutter, cold cutter, etc.;
3. Optional oblique pen, bottom pen, blowing pen, auxiliary cooler, etc.;
4. Thickness controller is optional;
5. Optional permanent magnet brushless DC motor independently developed by Leshan Machinery for plastic hollow molding machines: high reliability, good stability, comprehensive energy saving of 8% to 15%;
6. Optional polymer mixing screw: while ensuring the performance of the product, it can save 15%-30% of raw materials;
7. The Austrian SIGMATEK control system is optional, and its command execution speed is ten times that of the traditional cycle refresh mode;
8. Optional remote after-sales service system: automatic fault analysis and diagnosis, maintenance records, report statistics, video transmission, remote mobile phone SMS notification and alarm, etc., all in one machine, clear in the chest;
9. Optional dust-free air delivery system, conveyor belt, automatic feeding system, 4-in-1 feeding machine and other supporting functions;
10. Mold thimble function, in-mold labeling function, online leak detection function, and cover opening and closing function are optional;
11. Front and rear mobile platforms are optional, which is convenient for mold installation;
12. Optional pre-clamp function, 2-axis servo manipulator, single-axis servo manipulator;
13. Users can choose shunt shuttle, spiral or glue discharge die head, continuous extrusion die head and storage die head according to their preferences.
14. It can be equipped with a super-large pen blowing function to quickly increase production.
15. Manipulator is optional, which integrates the functions of secondary air blowing for sizing and air blowing for leak detection.
16. Optional gong mouth machine (inside machine and outside machine) can meet the needs of different product sizes to make the bottle mouth of the product smoother.

Model operation and precautions
1. Preparation before production
1.1 Check whether the machine has any parts or components damaged, check whether the screws are loose, check whether the wires and cables are damaged or fall off, and if damaged, replace or repair them in time; check whether there are sundries in the hopper of the extruder and clean them up, Then close the material gate.
1.2 Check whether the moving parts are firm, whether the screws are loose and fall off, especially where the impact is strong, and whether the belt transmission part is abnormal.
1.3 Check whether the high-pressure air source, low-pressure air source, power supply, and water source are normal.
1.4 Check whether the emergency stop switches, safety door switches, and protection device detection switches are normal.
1.5 Check whether each pneumatic component is leaking and whether the action is sensitive.
1.6 Please strictly follow the procedures in the operation manual.
