Extrusion blow molding machine

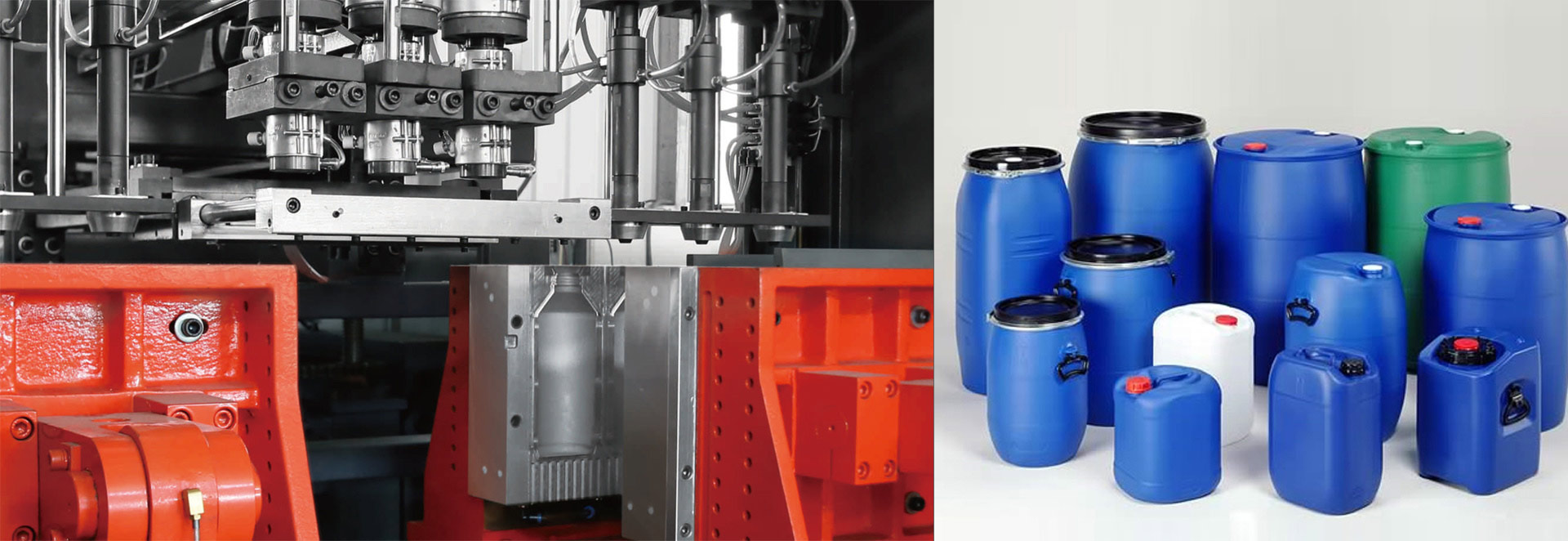

Extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines,chemical products, pesticides&detergents, water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low
investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
CHARACTER
1. The machine is high speed, high quality. The clamping system is with nether bending arm type. It can make sure the clamping force to be enough.
2. The mahine is with 100 point parison control system and with one set of seperate oil tank system .
3. The machine is with MITSUBISHI PLC and SIMENS operation screen.
4. The machine is with FESTO pneumatic parts.
5. The machine is with YUKEN hydraulic pump and valves.
| Name | Units | SX120 | SX150 |
| Max, product volume | L | 300 | 1000-5000 |
| Dry cycle | PC/H | 300 | 300 |
| Screw diameter | MM | 120 | 120*2 |
| Screw L/D ratio | L/D | 33 | 33 |
| Screw drive power | KW | 132 | 132*2 |
| Screw heating capacity | KW | 36 | 36*2 |
| No, of heating zone | ZONE | 6 | 6*2 |
| Outpul of HDPE | KG/H | 350 | 620-840 |
| oil pump drive power | KW | 37 | 37 |
| Camping force | KN | 900 | 1800 |
| Max,size of mold | MM | 1200*1700 | 1600*2200 |
| Template size | MM | 1200*1600 | 1600*2000 |
| Mold stroke | MM | 880-1700 | 800-2500 |
| Max,die diameter | MM | 700 | 1000 |
| Die heating power | KM | 36 | 64 |
| Die heating few segments | ZONE | 6 | 8 |
| Bolwing pressure | MPA | 0.8 | 1.2 |
| Air volume | M³/MIN | 1.6 | 6 |
| Cooling water pressure | MPA | 0.3 | 0.3 |
| Water consumption | L/MIN | 180 | 240 |
| Size of machine | L*W*H | 7.5*3.5*5.5 | 11.5*7.5*8 |
| Weight of machine | TON | 36 | 72 |
Features & Advantages
1. Reasonable structure design and solid frame manufacturing to insure running stability. 2. Good head material runner deisgn and precision metal process for changing color easily. 3. According to your specified request, our machine can be made with co-extrusion of 1~3 layers and view stripe line. 4. Colorful touch screen, cantilever operation box, energy saving servo motor, robot arm and safety protection. 5. Total machine control system well match with pushing-out, core in/out, sub-mould de-molding, angle adjustable blowing unit, neck trimming tool, in-mould labeling, weight testing and leakage testing, product conveying & packing.
